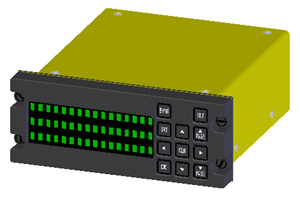

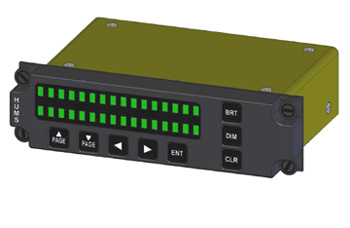

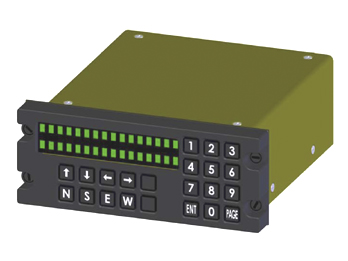

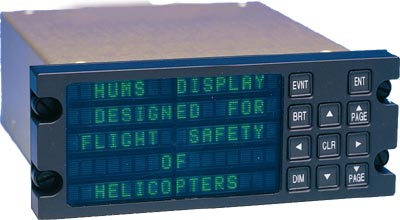

Radiant Power has a series of cockpit control units (CCUs) available for avionic message applications. The primary function is to accept serial data from the host computer and display it in a multi-line 16-character alphanumeric format.
The smart alpha-numerical microprocessor-controlled characters are sunlight readable and available in NVIS (MIL-STD-3009) compatibility. The RS-422 serial communication protocol operates in a command/response mode. The CCU positively acknowledges each command message from the host computer.
Switch closure detection is reported to the host computer through a rate encoder.
There are seven pre-programmed dimming levels available within the CCU. Additional levels can be designed upon request.
Power is a DC-DC converter that has input capability to the range for MIL-STD-704 from 18 to 50 V DC. Filters prevent conductive radiation into the aircraft bus. There is also lightening protection through a 50 volt transient surge suppressor.
Applications
- Communications
- Navigation
- Control
- Command
- Diagnostic
- Weapons Management
- Data Master
- Health Usage and Monitoring Systems (HUMS)
Contact us for additional information on our products.
