Human Machine Interface products are used throughout the cockpit to provide information and control of aircraft systems. Our illuminated products offer this capability for both day and night operations and can be adopted for use in night vision applications (NVG / NVIS).
HMI products are known by several names and technologies including Lightplates, Lighted Panels, Keyboards, Illuminated Keyboards, Glareshields, Glareshield Lights, Floodlights, Post Lights, Control Panels, Electronic Assemblies, Annunciator Panels, Indicator Panels, Circuit Breaker Panels, etc.
LIGHTPLATE AND KEYBOARD DETAILS
AMONG THE MOST COMMON HMI PRODUCTS

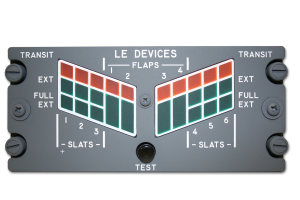

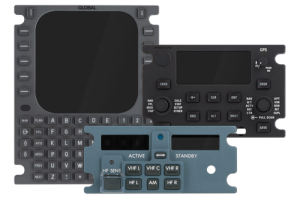

Lightplates and Keyboards are among the most common HMI products integrated into the cockpit directly or as part of another aircraft system. These specialized products are highly engineered and defined by common industry accepted performance characteristics. While the following general specifications are frequently requested, there are often cases when mission specific requirements are needed. Radiant Power is here to help with your needs … standard or uncommon.
LIGHTPLATE SPECIFICATIONS
- Panel Material
- Injection molded thermoplastic or machined
- sheet acrylic per MIL-P-5425 & MIL-PRF-5425
- Finish Color
- Conforms to FED-STD-595. Custom colors available
- Panel Marking
- Per SAE-AS18012, MIL-DTL-7788, or MIL-STD-130
- Circuit Board Material
- Metal-clad, laminated and reinforced sheet per IPC-4101
- Electrical Connector
- MS90335 or commercial equivalent
- Light Sources
- Incandescent or light-emitting diodes (LED)
- NVG Compatibility
- Can be designed to meet the requirements or
- MIL-L-85762 & MIL-STD-3009
- Stray Light
- Not visible at ± 90° to normal
- Insulation Resistance
- 500 VRMS
- Environmental
- Per SAE-AS7788, MIL-DTL-7788 or RTCA DO-160
- Workmanship
- Per IPC-A-610, Class 2 or better
KEYBOARD SPECIFICATIONS
- Bezel Material
- Aluminum, acrylic or molded thermoplastic
- Keycap/Button Material
- Aluminum, acrylic or molded thermoplastic
- Switch Function
- Single pole, single throw, momentary, normally open
- Switch Feel
- Snap-action, positive tactile response
- Actuation Force
- 9, 14, 18 and 28 ounce nominal forces are standard
- Life
- Tested to 1,000,000 cycles
- Contact Bounce
- 5 milliseconds maximum
- Contact Rating
- 100 milliamps at 28 VDC (resistive)
- Circuit Board
- Designed per IPC-D-275
- Insulation Resistance
- 500 VRMS
- Light Sources
- Incandescent or light-emitting diodes (LED)
- NVG Compatibility
- Can be designed to meet the requirements or MIL-L-85762 & MIL-STD-3009
- Operating Temperature
- -40° C. to +71° C., typical
- EMI
- Per MIL-STD-202 or RTCA DO-160
- Environmental
- Per MIL-STD-202 or RTCA DO-160
- Workmanship
- Per IPC-A-610, Class 2 or better
ELECTRONIC ASSEMBLY DETAILS
Working to RTCA DO-160, DO-178, and DO-254; we design and build a variety of electronic assemblies, avionics, and data communication products. These products are commonly comprised of thermally efficient mechanical enclosures containing complex circuit assemblies and software. We focus on space-saving designs that fit the real-world needs of modern aircraft cockpits.
